Warp Knitting Machines
Warp Knitting Machine double is bar is for short pile fabric. The warp knitting machine could be used chemical fibres such as polyester, polyamide, acrylic, polypropylene & viscose or natural fibres such as cotton yarn, blended yarn etc. War knitting Machine is idle to produce short pile fabrics, which pile height is with in 6 mm or space fabric with thickness of 0.6 – 12 mm (calling sandwich fabric). Warp knitting machine is equipped with jacquard, machine could change & produce Tri dimensional designs rapidly..
Technical Features
It double needle bar machine for short pile fabrics. It could use chemical fibers such as polyester, polyamide, acrylic, polypropylene and viscose or natural fibers such as spinning cotton yarn, blended yarn etc, to produce short pile height is within 6mm or space fabrics with thickness of 0.6-12mm called us (sandwich fabrics). Equipped with Jacquard, machine could change and produce tri-dimensional designs repidily. By using different yarns, machine could produce different fabrics with vivid-colored designs which could be widely used for garments, shoe fabrics, home textiles fabrics and auto cushions etc.
- Machine get optimized by applying eccentric lever, Good power system also makes operation stable and reliable, thus improves the quality and quantity efficiently.
- Latch needle block and individual latch needle bed are subject to different customers.
- Optional trace plate distance adjustment device is suitable for rapid change on varied thickness of fabrics.
Technical Parameter
| Machine Type | E2295/6 | E2295/7 | E2295/8 | E2295/-J6/1 | E2295/-J6/2 | E2295/-J7/1 | E2295/-J5/3 |
|---|---|---|---|---|---|---|---|
| Needle | Latch Needle | ||||||
| Gauge | E16, E22, E24, E26, E28 | E22, E24 | |||||
| Working width(mm) | 84*\ 136*\ 154*\ | ||||||
| No. of Guide Bars | 6 Bars (2 Ple Bars) | 7 Bars (3 Ple Bars) | 8 Bars (3 Ple Bars) | 5 Ground Bars (1 Ple Bars) | 4 Ground Bars (2 Ple Bars) | 6 Ground Bars (1 Ple Bars) | 2 Ground Bars (3 Ple Bars) |
| Trace Plate Distance(mm) | 0.6 – 12 | ||||||
| Max Knitting Speed (courses/min) | 800 | 750 | 700 | 550 | 500 | 550 | 450 |
| Pattern drive device | N – type Pattern drive device or EL device | ||||||
| Let-off Device | EBC Let-off System | ||||||
| Take-up Device | Electronic Take-up Device | ||||||
| Max fabric batching diameter (mm) | 1270 | ||||||
| Dia of sectional beam (mm) | 1016*535 (40*21) or 762*535 (30*21) | ||||||
| Total machine power (kw) | 20 | ||||||

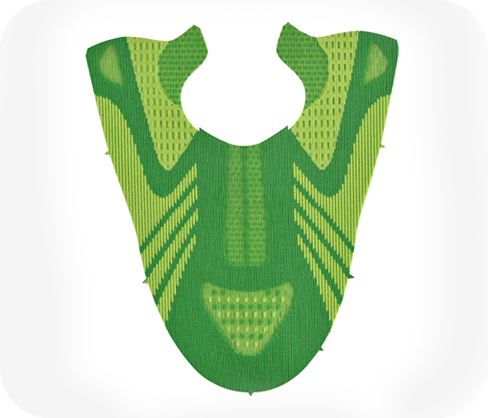

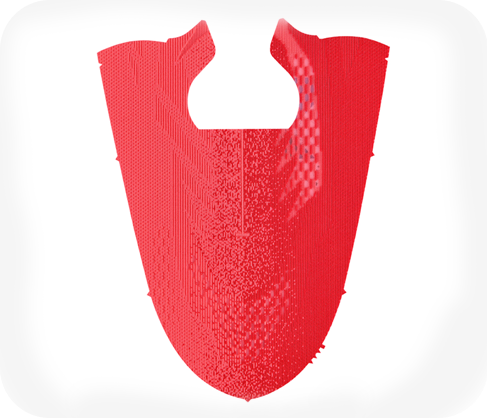

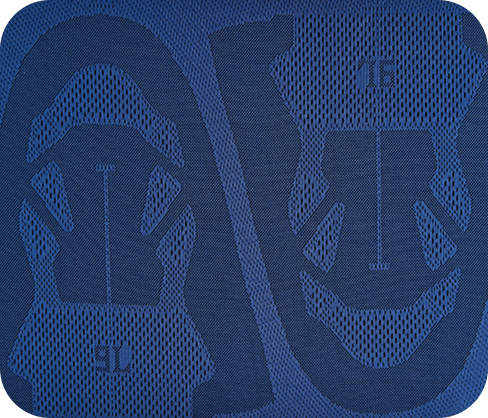

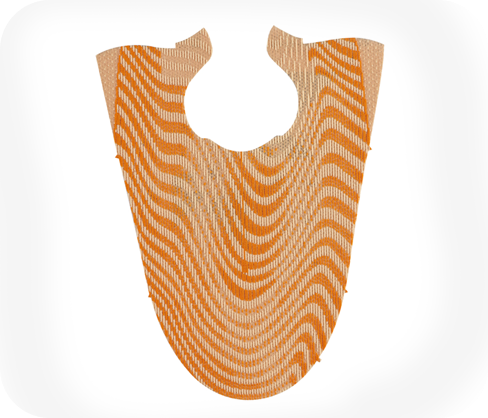

Product Application
What is the price?
What is the delivery period?
What is the warranty on the machine?
What types of services does this company provide?
- Installation and Commissioning of new machine
- AMC service to our customers after completion of guarantee periods.
- Spare parts service including needles, sinker, jack mechanical and electronic spare parts.
